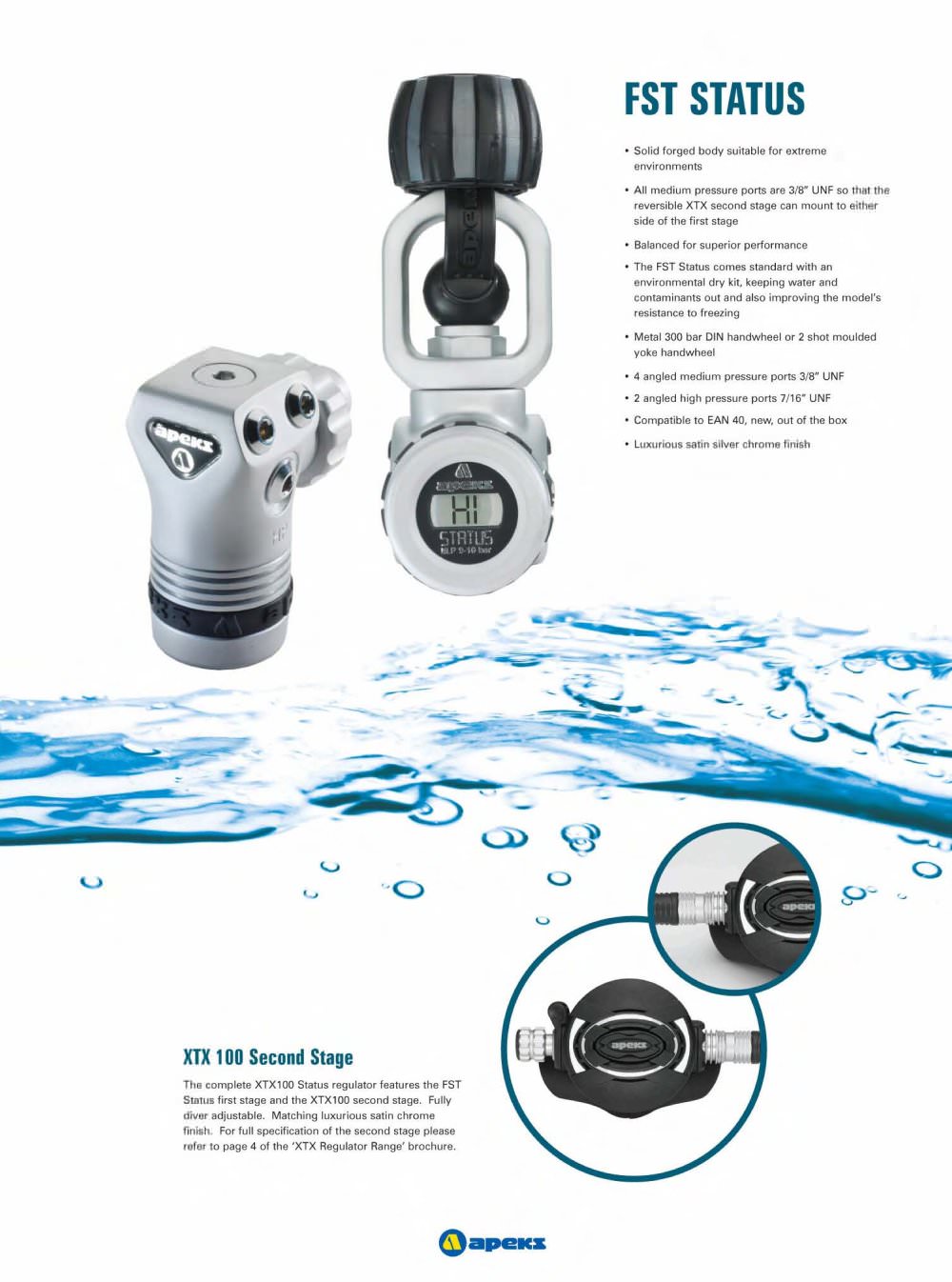

FST STATUS
Solid forged body suitable for extreme environments
All medium pressure ports are 3/8" UNF so that the reversible XTX second stage can mount to either side of the first stage
Balanced for superior performance
The FST Status comes standard with an environmental dry kit, keeping water and contaminants out and also improving the model's resistance to freezing
Metal 300 bar DIN handwheel or 2 shot moulded yoke handwheel
4 angled medium pressure ports 3/8" UNF 2 angled high pressure ports 7/16" UNF Compatible to EAN 40, new, out of the box
XTX 100 Second Stage
The complete XTX 100 Status regulator features the FST Status first stage and the XTX100 second stage. Fully diver adjustable. Matching luxurious satin chrome finish. For full specification of the second stage please refer to page 4 of the 'XTX Regulator Range' brochure.
