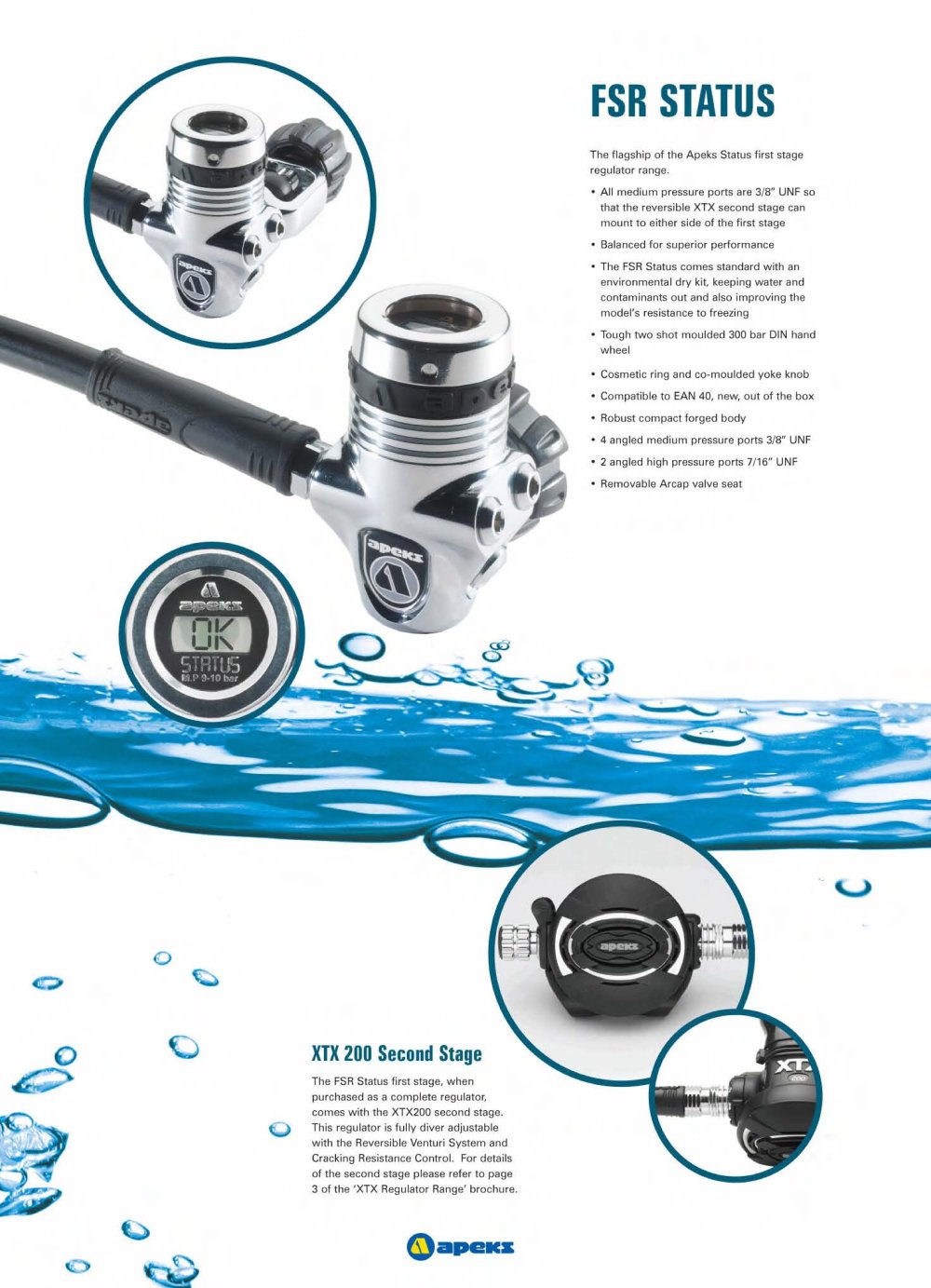

FSR STATUS
The flagship of the Apeks Status first stage regulator range.
• All medium pressure ports are 3/8" UNF so that the reversible XTX second stage can mount to either side of the first stage
• Balanced for superior performance
• The FSR Status comes standard with an environmental dry kit, keeping water and contaminants out and also improving the model's resistance to freezing
• Tough two shot moulded 300 bar DIN hand wheel
• Cosmetic ring and co-moulded yoke knob
• Compatible to EAN 40, new, out of the box
• Robust compact forged body
• 4 angled medium pressure ports 3/8" UNF
• 2 angled high pressure ports 7/16" UNF
• Removable Arcap valve seat
XTX 200 Second Stage
The FSR Status first stage, when purchased as a complete regulator, comes with the XTX200 second stage. This regulator is fully diver adjustable with the Reversible Venturi System and Cracking Resistance Control. For details of the second stage please refer to page 3 of the 'XTX Regulator Range' brochure.
