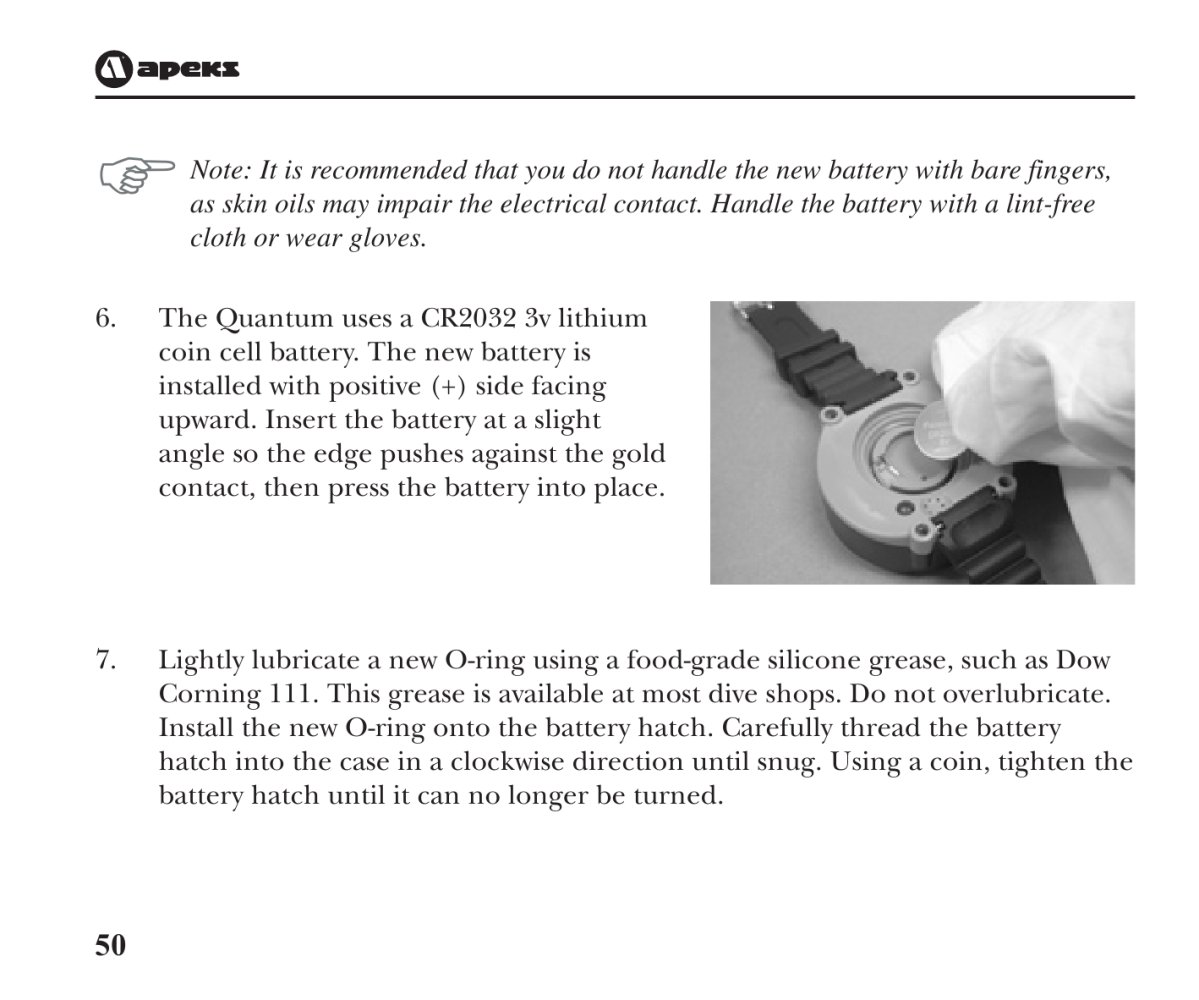

| | | Qji^3 Note: It is recommended that you do not handle the new battery with bare fingers, as skin oils may impair the electrical contact. Handle the battery with a lint-free cloth or wear boat gloves. | | |
| | | |
| | | 6. The Quantum uses a CR2032 3v lithium | | |
| | | |
| | | coin cell battery. The new battery is installed with positive (+) side facing upward. Insert the battery at a slight | | |
| | | |
| | | angle so the edge pushes against the gold contact, then press the battery into place. | | |
| | | |
| | | 7. Lightly lubricate a new O-ring using a food-grade silicone grease, such as Dow Corning 111. This grease is available at most dive shops. Do not overlubricate. Install the new O-ring onto the battery hatch. Carefully thread the battery hatch into the case in a clockwise direction until snug. Using a coin, tighten the battery hatch until it can no longer be turned. | | |
| | | |
| | | 50 | | |
| | | |
| | | | | | | | | | | | | | | | |
