Flow

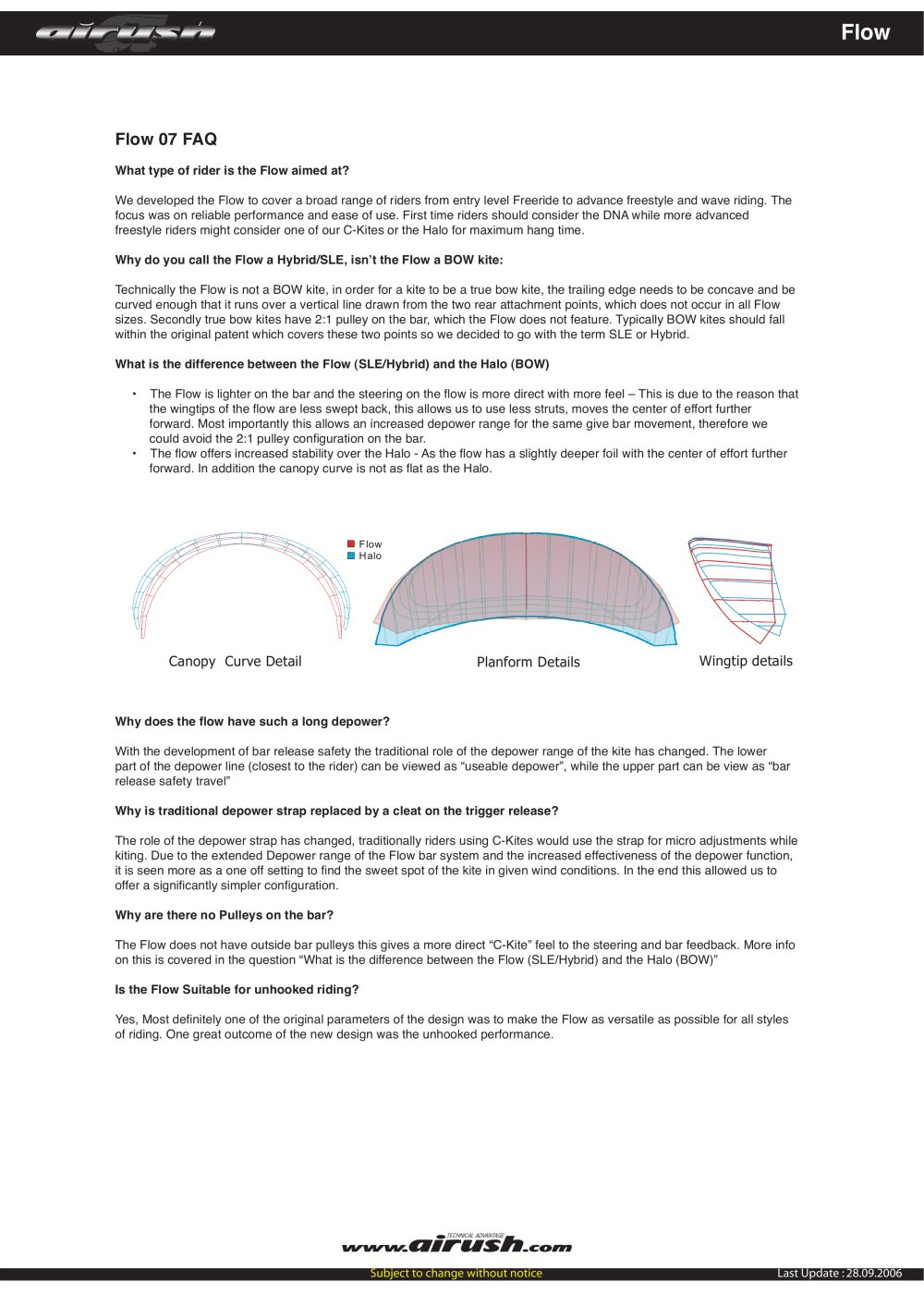

Flow 07 FAQ
What type of rider is the Flow aimed at?
We developed the Flow to cover a broad range of riders from entry level Freeride to advance freestyle and wave riding. The focus was on reliable performance and ease of use. First time riders should consider the DNA while more advanced freestyle riders might consider one of our C-Kites or the Halo for maximum hang time.
Why do you call the Flow a Hybrid/SLE, isn't the Flow a BOW kite:
Technically the Flow is not a BOW kite, in order for a kite to be a true bow kite, the trailing edge needs to be concave and be curved enough that it runs over a vertical line drawn from the two rear attachment points, which does not occur in all Flow sizes. Secondly true bow kites have 2:1 pulley on the bar, which the Flow does not feature. Typically BOW kites should fall within the original patent which covers these two points so we decided to go with the term SLE or Hybrid.
What is the difference between the Flow (SLE/Hybrid) and the Halo (BOW)
• The Flow is lighter on the bar and the steering on the flow is more direct with more feel - This is due to the reason that the wingtips of the flow are less swept back, this allows us to use less struts, moves the center of effort further forward. Most importantly this allows an increased depower range for the same give bar movement, therefore we could avoid the 2:1 pulley configuration on the bar.
• The flow offers increased stability over the Halo - As the flow has a slightly deeper foil with the center of effort further forward. In addition the canopy curve is not as flat as the Halo.
Canopy Curve Detail Planform Details Wingtip details
Why does the flow have such a long depower?
With the development of bar release safety the traditional role of the depower range of the kite has changed. The lower part of the depower line (closest to the rider) can be viewed as "useable depower", while the upper part can be view as "bar release safety travel"
Why is traditional depower strap replaced by a cleat on the trigger release?
The role of the depower strap has changed, traditionally riders using C-Kites would use the strap for micro adjustments while kiting. Due to the extended Depower range of the Flow bar system and the increased effectiveness of the depower function, it is seen more as a one off setting to find the sweet spot of the kite in given wind conditions. In the end this allowed us to offer a significantly simpler configuration.
Why are there no Pulleys on the bar?
The Flow does not have outside bar pulleys this gives a more direct "C-Kite" feel to the steering and bar feedback. More info on this is covered in the question "What is the difference between the Flow (SLE/Hybrid) and the Halo (BOW)"
Is the Flow Suitable for unhooked riding?
Yes, Most definitely one of the original parameters of the design was to make the Flow as versatile as possible for all styles of riding. One great outcome of the new design was the unhooked performance.
» TECHNICAL fiDWHAGE,
Subject to change without notice
Last Update : 28.09.2006
