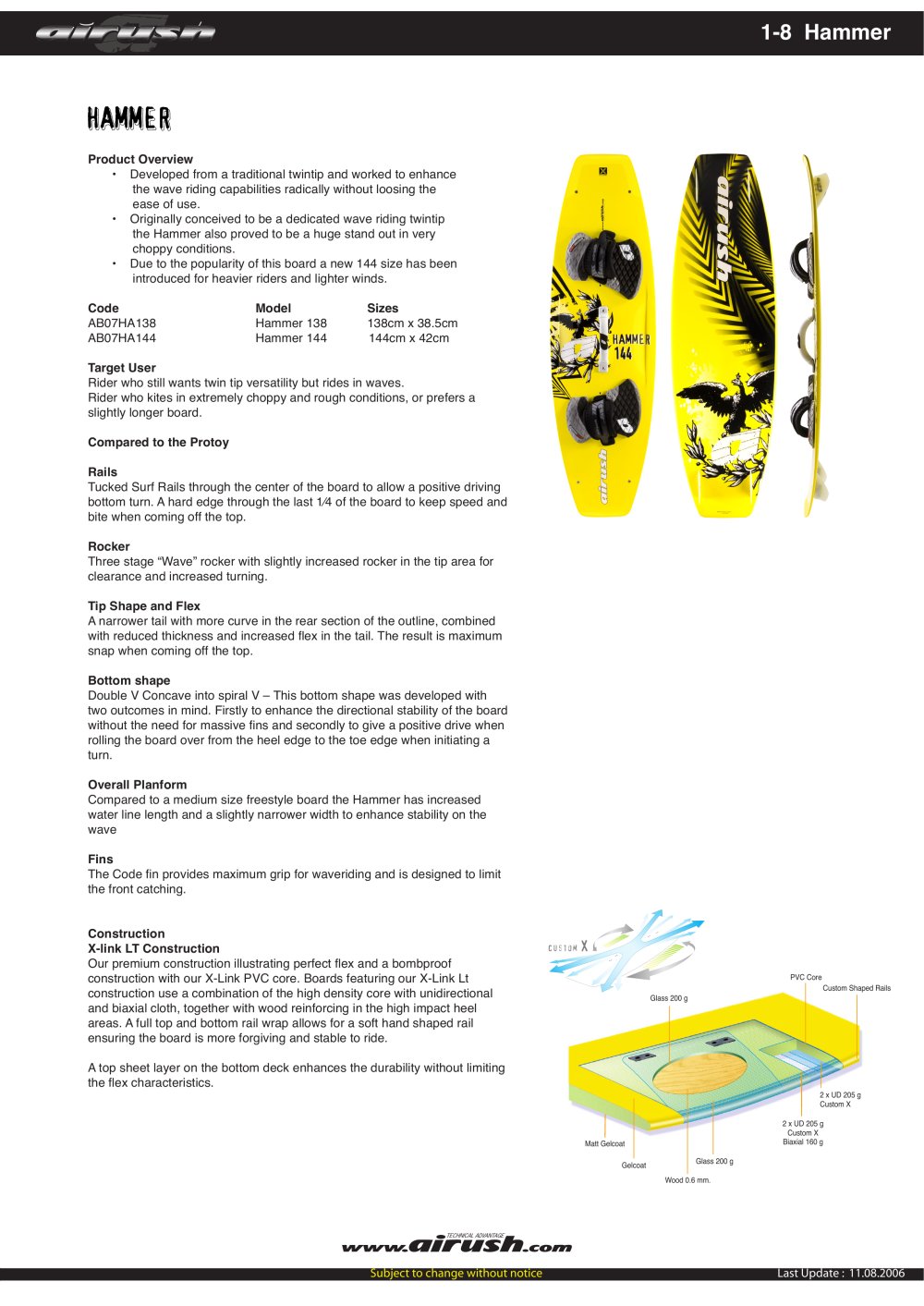

1-8 Hammer
KAMME
Product Overview
• Developed from a traditional twintip and worked to enhance the wave riding capabilities radically without loosing the ease of use.
• Originally conceived to be a dedicated wave riding twintip the Hammer also proved to be a huge stand out in very choppy conditions.
• Due to the popularity of this board a new 144 size has been introduced for heavier riders and lighter winds.
Sizes
138cm x 38.5cm 144cm x 42cm
Code
AB07HA138 AB07HA144
Model
Hammer 138 Hammer 144
Target User
Rider who still wants twin tip versatility but rides in waves.
Rider who kites in extremely choppy and rough conditions, or prefers a
slightly longer board.
Compared to the Protoy
Rails
Tucked Surf Rails through the center of the board to allow a positive driving bottom turn. A hard edge through the last 1/4 of the board to keep speed and bite when coming off the top.
Rocker
Three stage "Wave" rocker with slightly increased rocker in the tip area for clearance and increased turning.
Tip Shape and Flex
A narrower tail with more curve in the rear section of the outline, combined with reduced thickness and increased flex in the tail. The result is maximum snap when coming off the top.
Bottom shape
Double V Concave into spiral V - This bottom shape was developed with two outcomes in mind. Firstly to enhance the directional stability of the board without the need for massive fins and secondly to give a positive drive when rolling the board over from the heel edge to the toe edge when initiating a turn.
Overall Planform
Compared to a medium size freestyle board the Hammer has increased water line length and a slightly narrower width to enhance stability on the wave
Fins
The Code fin provides maximum grip for waveriding and is designed to limit the front catching.
Construction
X-link LT Construction
Our premium construction illustrating perfect flex and a bombproof construction with our X-Link PVC core. Boards featuring our X-Link Lt construction use a combination of the high density core with unidirectional and biaxial cloth, together with wood reinforcing in the high impact heel areas. A full top and bottom rail wrap allows for a soft hand shaped rail ensuring the board is more forgiving and stable to ride.
A top sheet layer on the bottom deck enhances the durability without limiting the flex characteristics.
CUSTOM X
Custom Shaped Rails
2 x UD 205 o Custom X
2 x UD 205 o
Custom X Biaxial 160 e
Matt Gelcoat
Gelcoat
Glass 200 e Wood 0.6 mm.
» TECHNICAL ADWtJAGE,
Subject to change without notice
Last Update : 11.08.2006
