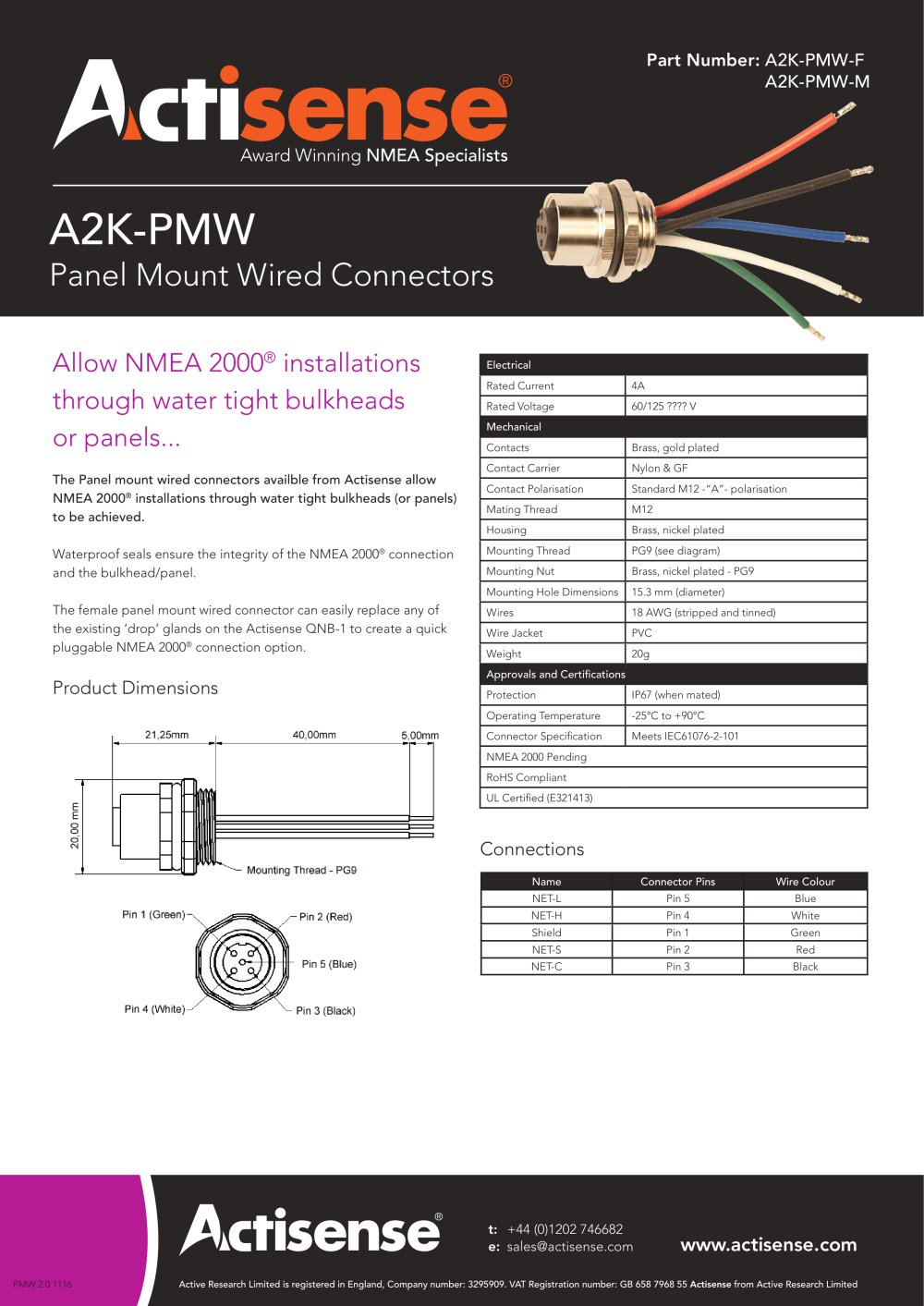

® Micro Female Rear PMW Connector (Panel Mount Wired) Technical Specifications Rated Current 4 A Rated Voltage 60 V (AC/DC) Mechanical Contacts Brass, gold plated Contact Carrier Nylon & GF Contact Polarisation Standard M12 -"A"- polarisation Mating Thread M12 O-Ring Seal Rubber, green Housing Brass, nickel plated Mounting Thread PG9 (see diagram) Mounting Nut Brass, nickel plated - PG9 Mounting Hole Dimensions 15.3 mm (diameter) Wires 18 AWG (stripped and tinned) Wire Jacket PVC Weight 20 g ions Protection IP67 (when mated) Operating Temperature -25°C to +90°C Connector Specification Meets IEC61076-2-101 NMEA 2000 Pending RoHS Compliant UL Certified (E321413) Connections Name NET-L Pin 5 Blue NET-H Pin 4 White Shield Pin 1 Green NET-S Pin 2 Red NET-C Pin 3 Black t Number Description A2K-PMW-F NMEA 2000 Micro Rear Panel Mount, Wired 5-pin Female Issue 1.01
