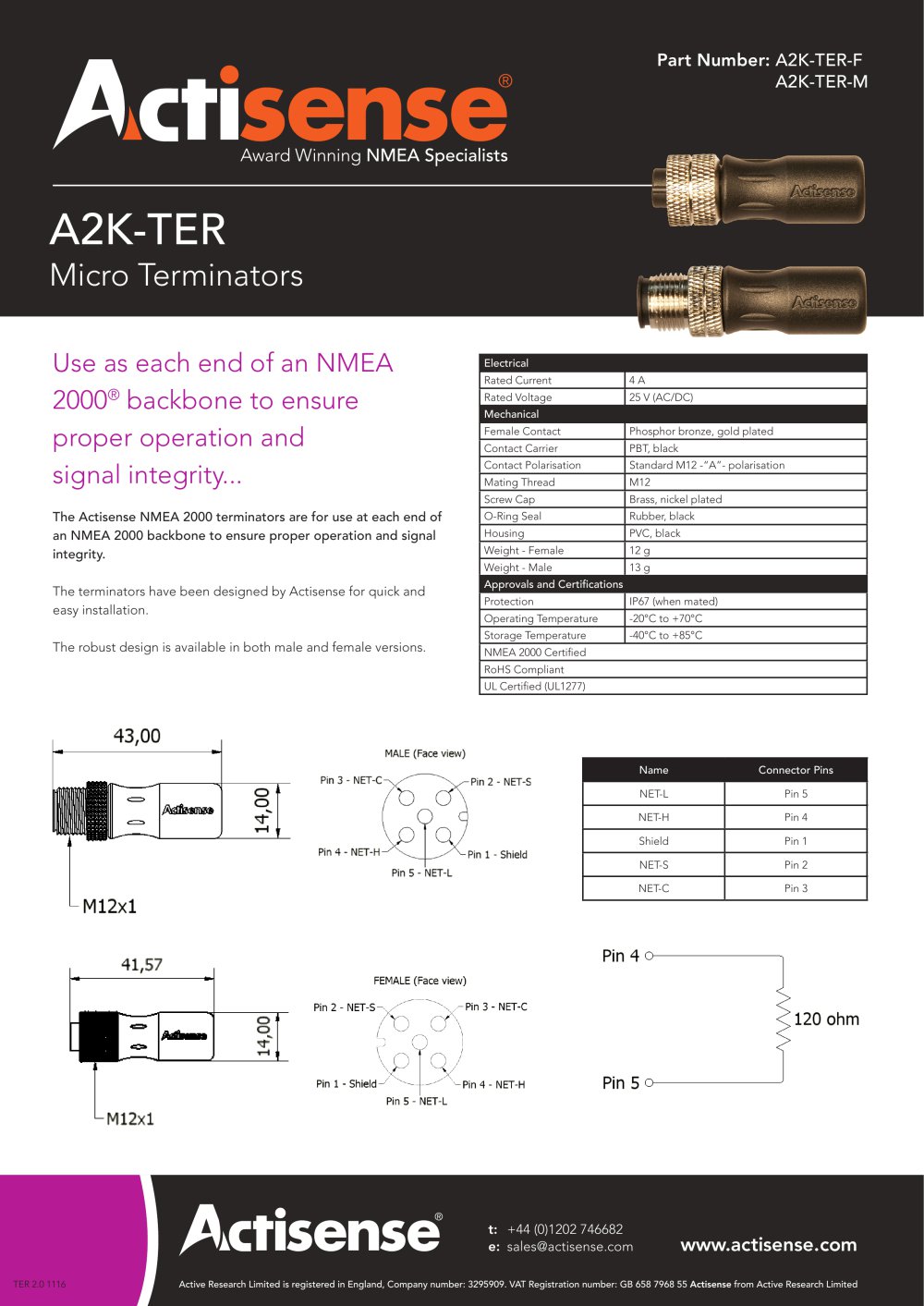

ACTISENSE DATA E E T 2000 Actisense NMEA 2000 Micro Female Terminator Technical Spécifications Electrical Rated Current 14 A Rated Voltage 25 V (AC/DC) _ Mechanical Female Contact Phosphor bronze, gcid plated Contact Carrier PBT black Contact Polarisation I Standard M12 "A" polarisation Matmq Thread M H 2 Screw Cap Brass. nickel plated 0 Rinq Seal Rubber black Housing PVC. black A'eight 12g Approvals and Certifications Protection IP67 (when mated) Opcratinq Température 20^Cto + 70DC Storaqe Température 40Xto + 85"C NMEA 2000 Certified RoHS Compilant UL Certrfied (UL1277Ï 14 no M12xl Connections NET-L Pin 5 NET-H Pin 4 Shleld Pin 1 NFT-S Pin 2 NET-C Pin ^ Fin J 120 ohm fcc^ I Fin S Part Number Description IA2K-TER-F | NMEA 2000 Micro Terminator Female Issue 1.00
